EVO-BED ALPHA Cubicle Bedder

  1. Home
  3. EVO-BED Cubicle Equipment
  5. EVO-BED ALPHA Cubicle Bedder

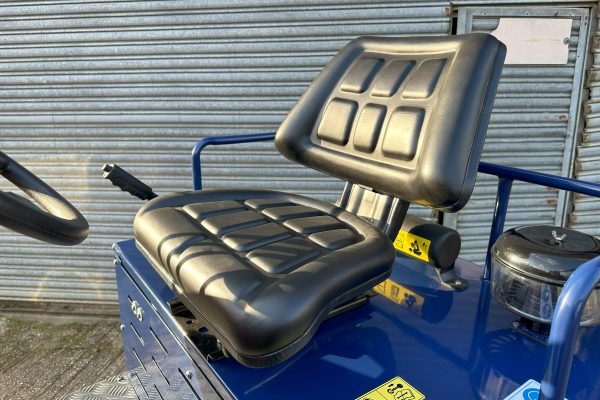

Designed, built & tested in Devon, the EVO-BED ALPHA is the ultimate ride-on cubicle bedder. From the comfort of a seat, use the tipping hopper to load the bedding material, then brush off the cubicles & apply a fresh layer of bedding material. It really is that easy! Saves time, material & is good for the operator, the EVO-BED ALPHA is the best cubicle bedder for the UK farmer.

Built upon years of experience in the cubicle bedding sector, we believe we have designed the ultimate cubicle bedder for most cubicle setups. Being designed & built in the UK to a high specification, & using the highest quality materials, each machine is built to last.

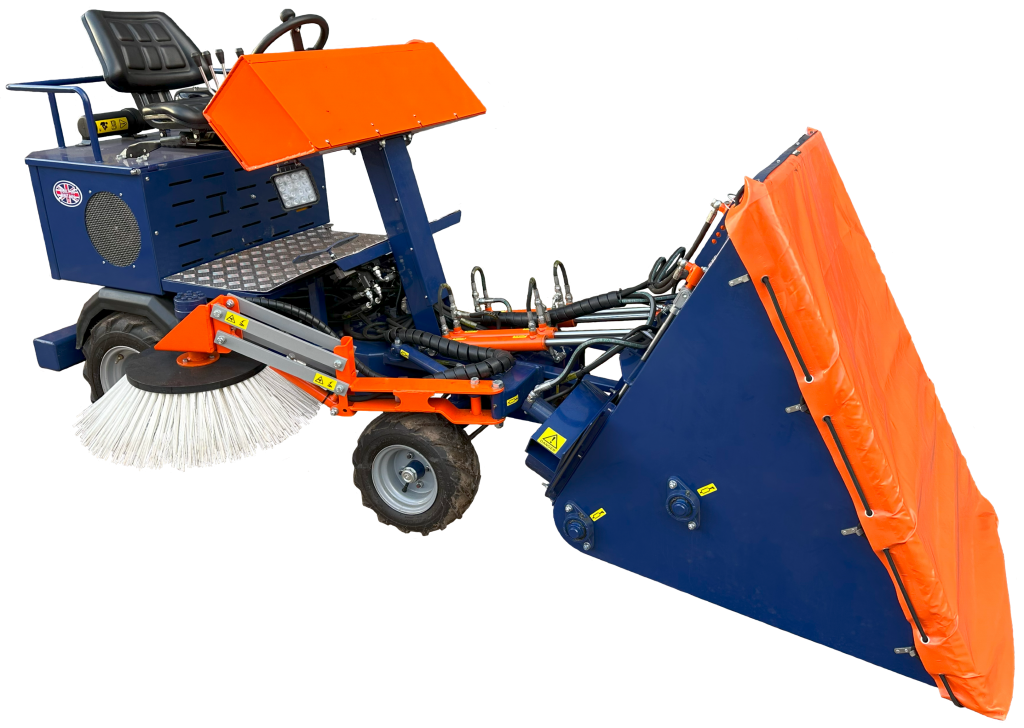

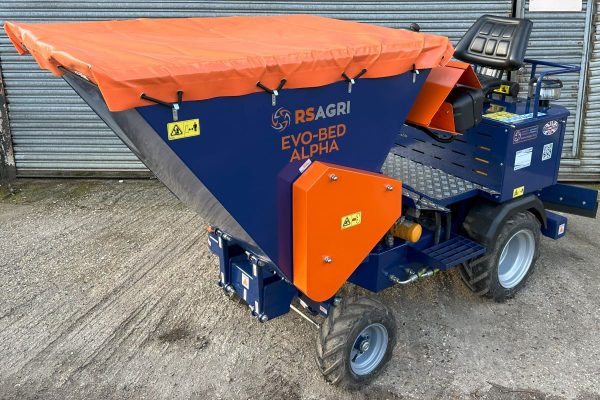

EVO-BED ALPHA cubicle bedder

Standout Features

► Designed & built in the UK

Designed & built in the UK with UK farmer’s in mind. Using our experience & with recommendations from operators, we designed the EVO-BED ALPHA to make the job easy & stress free. Built using the highest quality materials & modern manufacturing processes, the EVO-BED ALPHA is the ultimate cubicle bedder.

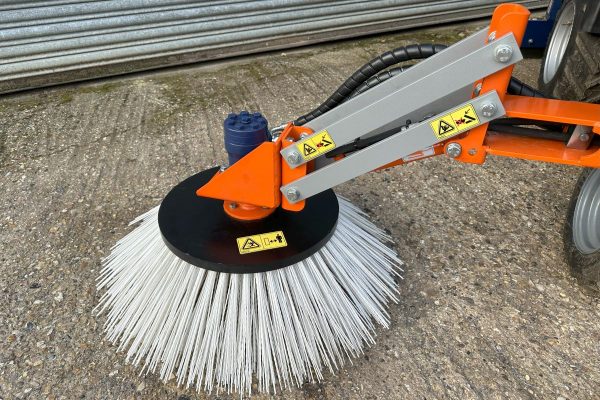

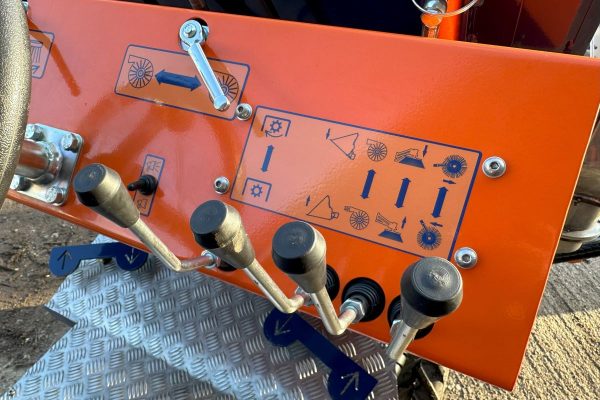

► Separate Hydraulic Circuits

Fitted with two hydraulic circuits, one for the fan unit & one for the brush, it allows you to run them separately. Meaning you can make two sweeping runs, one further in the cubicle & one further out, without spreading material on the first run. Additionally, when moving cubicle blocks you can turn the fan unit off. This reduces material wastage & increases savings.

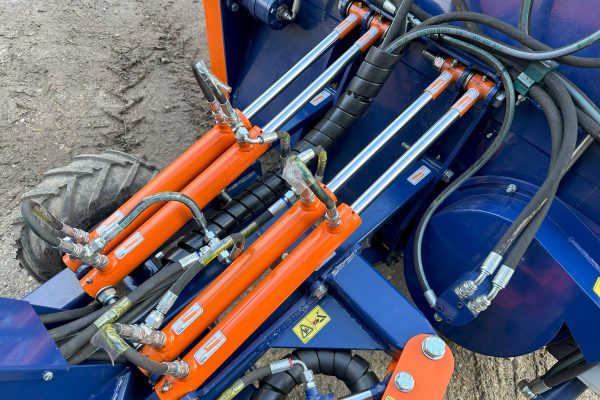

► 648 Litre Self-Loading Tipping Hopper

A 648 litre self-loading tipping hopper gives you the capacity to bed a large number of cubicles in a short amount of time. Fitted with an agitator & auger within the hopper, gives an even feed out into the fan unit. Resulting in a more consistent material coverage.

► 2WD Rear Mounted Heavy-Duty Differential Axle

Fitted with a 2WD heavy-duty differential axle driving the rear wheels. Developed in the construction industry, it gives you the grip & power needed when bedding up the cubicles.

Cubicle Bedder Hotspot

Click on a circle for more information on our cubicle bedder.

Cubicle Bedder Technical Data

Click on the dropdown for the technical data on our cubicle bedder.
EVO-BED ALPHA
EVO-BED ALPHA

 ALPHA
Overall Length (m)2.7
Working Length (m)2.9
Overall Height (m)1.55
Working Height (m)1.55
Overall Width (m)1.3
Working Width(m)1.95
Hopper Capacity (litres)648

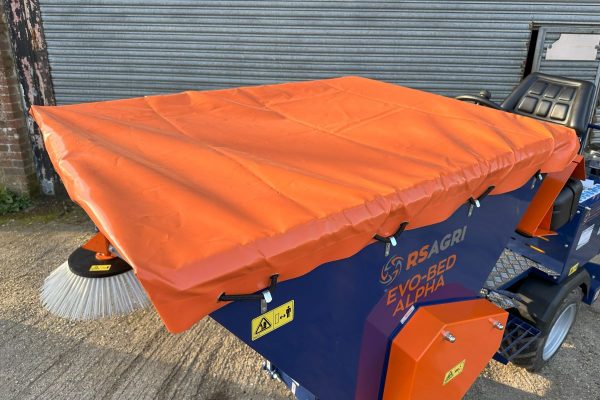

Hopper Cover100% PES
Spreading Distance (mm)500 - 2000
Spreading TypeFan unit

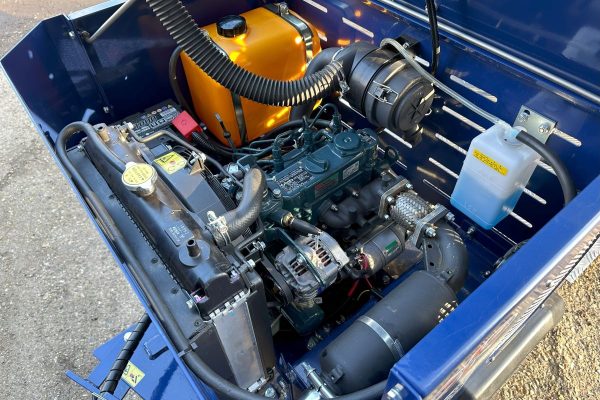

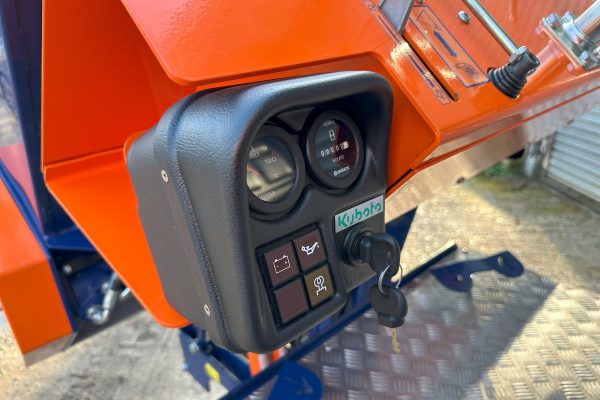

Engine Kubota
Engine Coolant TypeWater-cooled
Fuel Type Diesel
Fuel Tank Capacity (litres)13
Brush Diameter (mm)700
Transmission TypeHydrostatic
Transmission Speed (mph)0 - 3.7
Turning Circle (mm)3350
Front Tyre Size16 x 6.50 - 8
Rear Tyre Size23 x 8.50 - 12

Measurements above are guidelines only & may change without warning

Interested in a demo or want more information?

Please email info@rsagri.com or call 01256 850777
